Integrated motor products

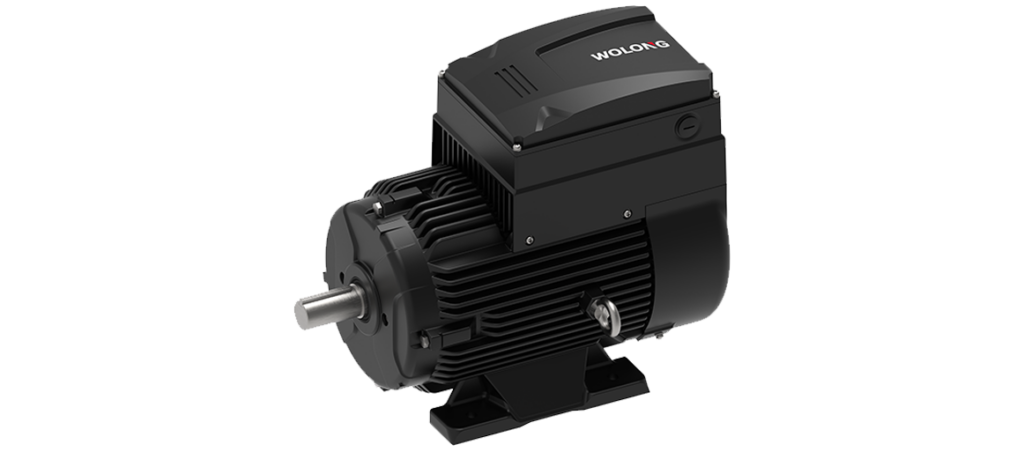

EMR-Bulldozer™ ferrite-assisted synchronous reluctance integrated motor
It is a high-performance integrated machine, mainly used in factory and large building ventilators.
Product Features
Independent R&D
Independently developed products
Excellent performance
Large starting torque at low speed and the ability to start against the wind
Product features
Wide application
Working conditions
-15℃～+40℃
Ambient temperature
Monthly average ≤90%
Humidity
≤1000m.a.s.l.
Altitude
Specifications
Rated power
3Hp ~ 20Hp
Rated voltage
230V, 460V, 480V, 600V
Rated frequency
50 / 60 Hz
Motor control mode
Direct flux control
Speed control range
1 : 100
Overload capacity
115% rated torque 60 min 175% 2s
Carrier frequency
2 ~ 10 K Hz, adjusted according to the load
Command source
Digital terminals, communication
Frequency source
Analog quantity, digital setting, communication
Motor type
Permanent magnet auxiliary synchronous reluctance motor
Efficiency level
Above IE4
Standards
IEC; GB
Certifications
UL, CUL
Applications
Fans and HVAC industry; It is a high-performance integrated machine, mainly used in factory and large building ventilators.
Typical applications
Smart buildings solutions
As a motor and drive technology enterprise in the building industry, Wolong Electric the whole industrial chain from HVAC, cold chain freezing, building water supply to sewage treatment, forming a complete product chain including motors, frequency conversion control, transformers, power supply, system energy saving and services, and providing our most advanced, reliable and energy-saving product solutions for residential, commercial and industrial building construction.
Green Industry
According to the report of the International Energy Agency (IEA), industrial energy consumption accounts for 37% of global total energy consumption and 24% of global carbon dioxide emissions. In the compressor and circulating water pump system, using Wolong efficient system solution can improve the system energy efficiency by 20%.
