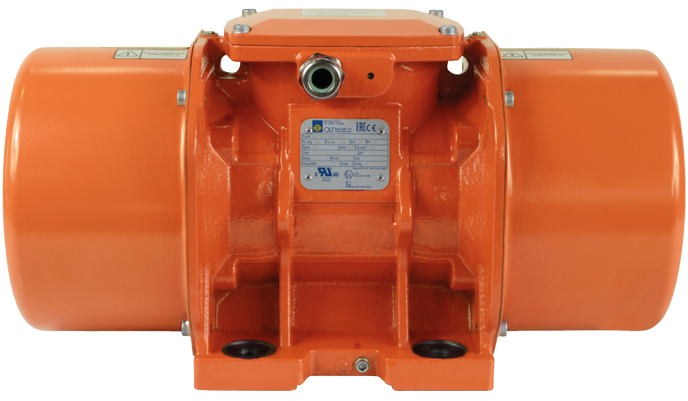

Vibration motors
MVE standard series
Vibration motor is widely used in vibrating screen, conveyor ,vibration feeder, compactor, casting excavator, fluid bed, spiral lift and other equipments.The centrifugal force ranging from 3 to 40000kg.
Product Features
High quality
High quality raw materials, branded bearings, high strength housing
High efficiency
Optimal power and weight ratio, S1 continuous duty, best electrical design.
High reliability
Special grease protection design, PTC thermistor, IP66.
Flexibility
Easy to adjust, optional multi-voltage and frequency, easy connection, & multiple installation hole
Operating Condition
-20℃～+40℃
Ambient temperature
Monthly average ≤90%
Relative humidity
≤1000m.a.s.l.
Altitude
Product Parameters
Frame material
Aluminum enclosure：MICRO-SIZE50 Iron enclosure：SIZE60-SIZE130
Rated power
0.03～30kW
Rated voltage
220/380V; 380/660V
Rated speed
50Hz: 750 ~ 3000rpm, 60Hz: 900 ~ 3600rpm
Duty
S1
Insulation
Class F
Protection grade
IP66
Cooling method
IC410
Standards
GB, IEC
Certifications
CE, CCC, ATEX ExII3D and ETL, Class II, Division 2
Applications
Vibration motor is widely used in vibrating screen, conveyor ,vibration feeder, compactor, casting excavator, fluid bed, spiral lift and other equipments.
Typical applications

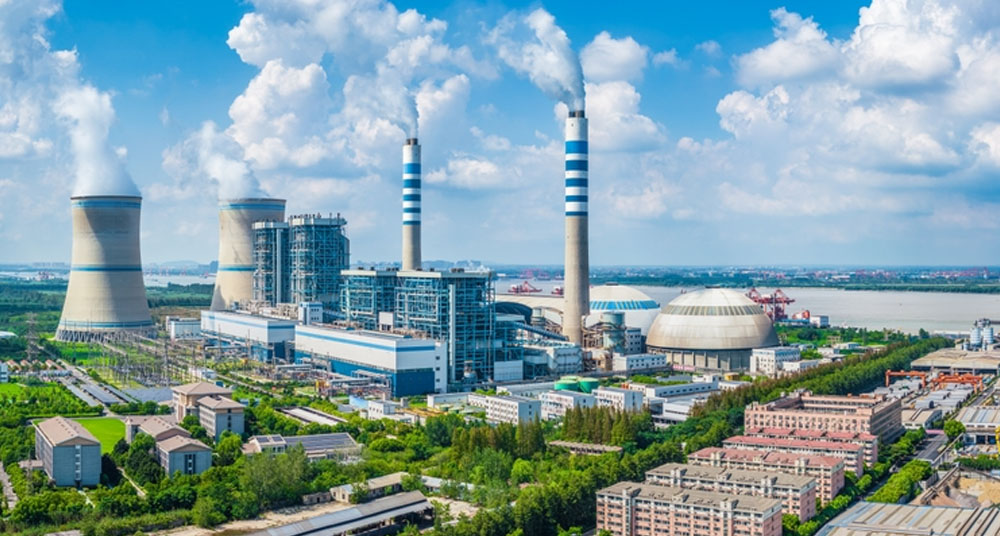

Green Industry
According to the report of the International Energy Agency (IEA), industrial energy consumption accounts for 37% of global total energy consumption and 24% of global carbon dioxide emissions. In the compressor and circulating water pump system, using Wolong efficient system solution can improve the system energy efficiency by 20%.
