Permanent magnet and SynRM motors

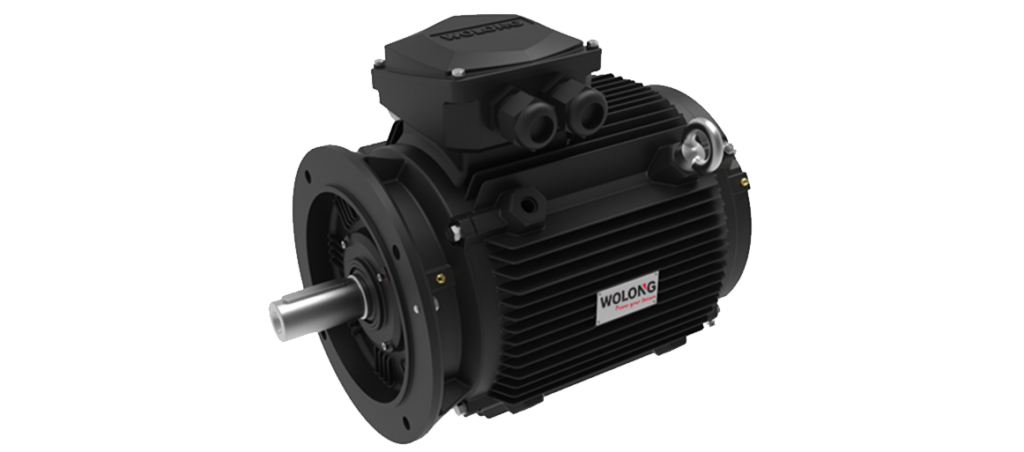

TYCP5 series low speed direct drive synchronous motors
Energy efficiency level reaching IE5. Capable of achieving S-curve start-up under low-speed heavy loads. Offering advantages such as low speed, high torque, high transmission efficiency etc.
Product Features
Independent R&D
Independently develop a series of products
Excellent Performance
Low speed, high torque High transmission efficiency Stable operation, compact structure
Product features
High efficiency
Low noise, low vibration
Safety and reliability
Wide application
Mixing tanks, belt conveyors, hoists, ball mills, crushing machinery, cooling towers, etc.
Working conditions
-15℃～+40℃
Ambient temperature
Monthly average ≤90%
Humidity
≤1000m.a.s.l.
Altitude
Specifications
Frame size
IEC180 ～560
Rated power
1.1～90kW
Rated voltage
50Hz: 380V/660V
Rated speed
25～500rpm
Efficiency level
IE5
Mounting option
B3, V1
Insulation
Class F/B, △ T 80K
Protection grade
IP55
Cooling method
IC410, IC70W
Ambient temperature
40℃，altitude 1000m.a.s.l
Standards
IEC 60034-1:2010
Certifications
CE
Applications
Pumps, fans, air compressors, machine tools, reducers, packaging machinery, mining machinery,construction machinery and other types of transmission machinery industry.
Typical applications
Green Industry
According to the report of the International Energy Agency (IEA), industrial energy consumption accounts for 37% of global total energy consumption and 24% of global carbon dioxide emissions. In the compressor and circulating water pump system, using Wolong efficient system solution can improve the system energy efficiency by 20%.
