Integrated motor products

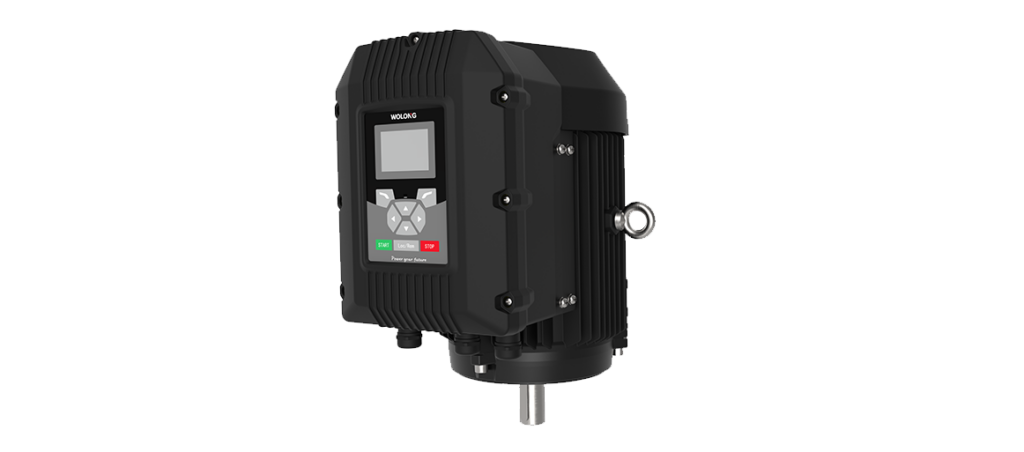

WIDM100/110 series integrated PM motor
It has the advantages of integration, high energy efficiency, high protection, small volume, etc. Easy to operate, with high reliability, low noise, and can drive and control a variety of devices.
Product Features
Independent R&D
Excellent performance
Product features
Wide application
Working conditions
-15℃～+40℃
Ambient temperature
Monthly average ≤90%
Humidity
≤1000m.a.s.l.
Altitude
Specifications
Rated power
0.75 ~ 18.5kW
Rated voltage
Three phase 380 V ~ 440 V，-10% ~ +10%
Rated frequency
48 ~ 62 Hz
Motor control mode
Vector control
Speed control range
1 : 25
Overload capacity
-0.5 ~ +0.5
Carrier frequency
110% rated torque 60s
Command source
2 k ~ 16 k Hz, adjusted according to the load
Frequency source
Control setting operation panel, digital terminals, communication
Motor type
Permanent magnet synchronous motor
Efficiency level
IE5
Standards
IEC; GB
Certifications
CE, CCC
Applications
Various water pump and fan loads
Typical applications
Smart buildings solutions
As a motor and drive technology enterprise in the building industry, Wolong Electric the whole industrial chain from HVAC, cold chain freezing, building water supply to sewage treatment, forming a complete product chain including motors, frequency conversion control, transformers, power supply, system energy saving and services, and providing our most advanced, reliable and energy-saving product solutions for residential, commercial and industrial building construction.
Green Industry
According to the report of the International Energy Agency (IEA), industrial energy consumption accounts for 37% of global total energy consumption and 24% of global carbon dioxide emissions. In the compressor and circulating water pump system, using Wolong efficient system solution can improve the system energy efficiency by 20%.
